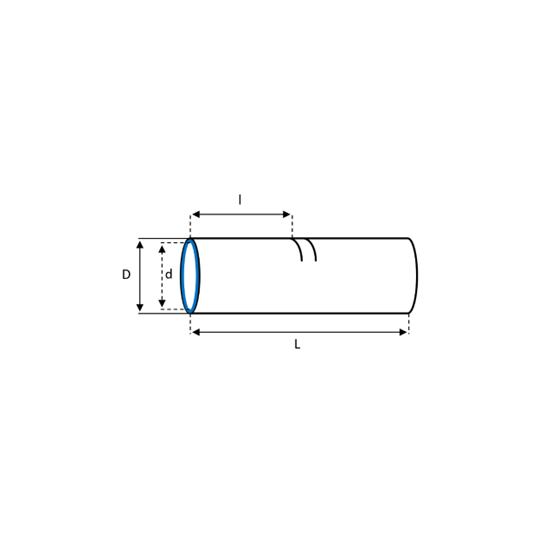

| 產品 料號 | 線徑資訊 | 尺寸說明 | ||||
| D | d | l | L | |||
| 〔㎜2〕 | AWG / kcmil | ㎜ | ㎜ | ㎜ | ㎜ | |
| BL-14 | 10.52-16.78 | #6 | 8.8 | 5.8 | 23.5 | 50.0 |
| BL-22 | 16.78-26.66 | #4 | 11.3 | 7.7 | 25.3 | 52.0 |
| BL-38 | 26.66-42.42 | #1/0 | 12.4 | 8.8 | 31.0 | 64.0 |
| BL-60 | 42.42-60.57 | #2/0 | 13.8 | 10.0 | 34.0 | 70.0 |
| BL-80 | 76.28-96.3 | #3/0 | 16.0 | 12.0 | 37.0 | 75.0 |
| BL-100 | 96.3-117.2 | #4/0 | 18.0 | 13.0 | 37.0 | 75.0 |
| BL-125 | 127 | 250 MCM | 20.0 | 15.0 | 42.0 | 85.0 |
| BL-150 | 152 | 300 MCM | 22.0 | 16.0 | 46.0 | 94.0 |
| BL-200 | 203 | 400 MCM | 26.0 | 19.5 | 51.0 | 104.0 |
| BL-250 | 253 | 500 MCM | 28.0 | 21.5 | 56.5 | 114.0 |
| BL-325 | 325 | 650 MCM | 32.0 | 24.5 | 58.0 | 118.0 |
| BL-400 | 400 | 800 MCM | 37.0 | 30.0 | 62.5 | 130.0 |
| BL-500 | 500 | 1000 MCM | 40.0 | 31.0 | 74.0 | 150.0 |
**請檢查您的 電纜導體 直徑 再參照表格選型.
