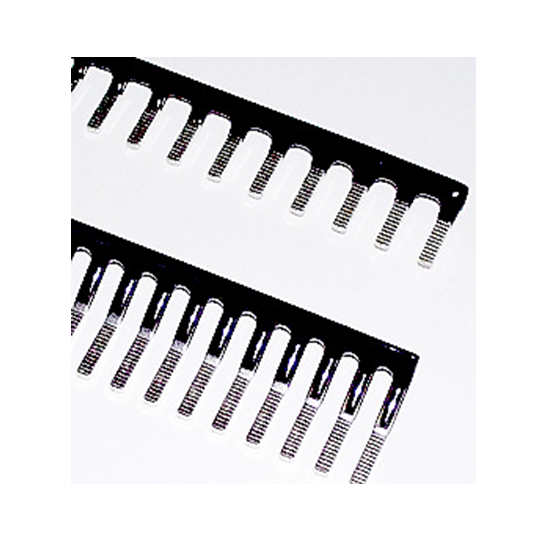

PCL Series Multi Poles Jumper Bar
SHIHPAO® PCL系列 多入式梳型短路条
可程序化逻辑控制器（programmable logic controller，简称PLC）欧式端子台专用〔多入式梳型短路条〕可便于跳线时，经由多入式设计，免于被大厂制式化规格所限制，原先设计是经由ENTRELEC品牌欧式端子台规格所设计，符合其他厂牌欧式端子台试用。
当遇到不必要使用的插栓，可扳折断开，绝缘橡胶保留并将缺口隔绝，非常便利于自动控制产业在配线时，简化省时了配线时间。
- 订购信息：最小订购量：1 支
10 支 / 包
| Technical Information | |||||
| Product Code | PCL81-80P | PCL61-106P | PCL6-106P | PCL51-128P | PCL5-128P |
| Type | Short | Short | Long | Short | Long |
| Poles | 80 | 106 | 106 | 128 | 128 |
| Insulation Material | Brass / Rubber | ||||
| Rated Current | 30 A | ||||
| Function | Lateral Jumper Bars | ||||
| Operating Temperature | -55 - 110°C | ||||

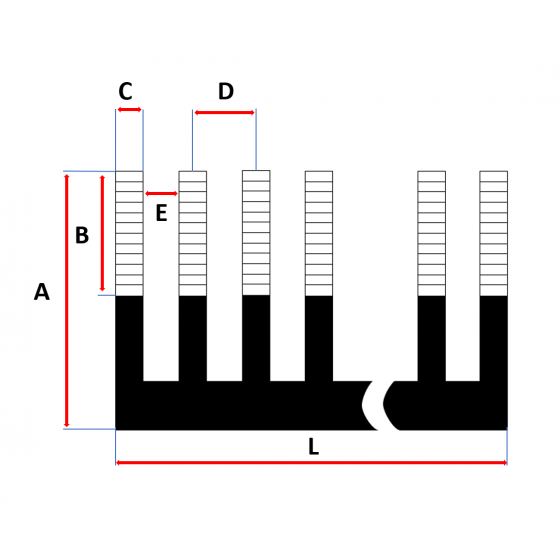

| Product Code | Length A (mm) | Width B (mm) | Width C (mm) | Spacing D (mm) | Spacing E (mm) | Length L (mm) |
| PCL5-128P | 19.0 | 9.0 | 2.2 | 5 | 2.7 | 644 |
| PCL51-128P | 16.0 | 8.0 | 2.6 | 5 | 2.5 | 642 |
| PCL6-106P | 24.0 | 10.0 | 2.6 | 6 | 3.5 | 642 |
| PCL61-106P | 16.0 | 8.5 | 2.5 | 6 | 3.5 | 640 |
| PCL81-80P | 16.0 | 8.5 | 2.6 | 8 | 5.4 | 636 |
