A/B Re-enterable Resin

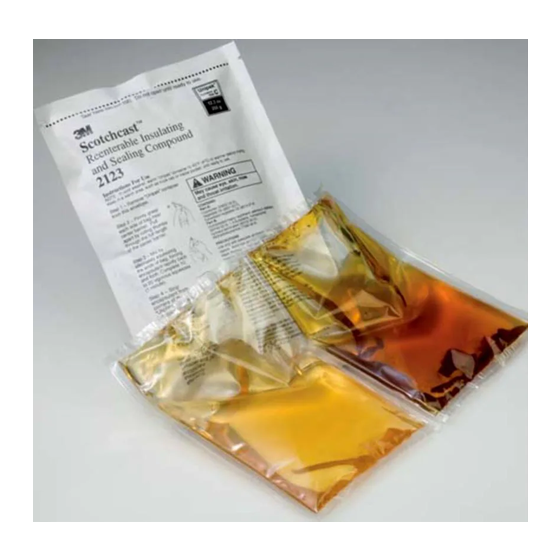

3M™ Scotchcast™ Re-enterable Electrical Insulating Resin 2123

3M™ Scotchcast™ Re-enterable Electrical Insulating Resin 2123 is a soft, two-part
polybutadiene resin encapsulant designed especially for re-enterable splice protection. It
is formulated for virtually every electrical application requiring a soft, re-enterable resin
with good handling and performance characteristics. This resin is also used as the
insulating material for cable splices operating at 1000 volts, and is rated for continuous
use at 90ºC with an overload rating of at 130ºC.

  • Product Specification:C 363.75ml (12.3 oz.) 350g
    D 626.95ml (21.2 oz.) 600g
  • Order Information:Minimum Order Quantity: 1 Bag
    10 Bags / Box

Hardness:0 SHORE A

Operating Rated Level:1,000 V

Continuous Temperature:90ºC, Overload 130ºC

Color:Translucent Amber
