A/B Resin

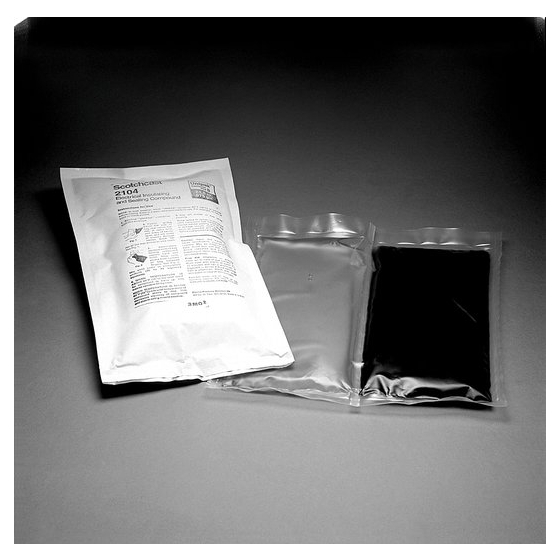

3M™ Scotchcast™ Electrical Insulating Resin 2104
3M™ Scotchcast Electrical Insulating Resin 2104 is a hard two-part, polyurethane resin encapsulant designed especially for permanent splice protection. Scotchcast 2104 resin is formulated for virtually every electrical application requiring a hard, non-reenterable resin with good handling and performance characteristics. Scotchcast 2104 resin is also used as the insulating material for cable splices operating at 1000 volts or less and is rated for continuous use at 90°C with an overload rating of 130°C.
- Product Specification:A 102.33 ml (3.46 oz.) 98g
B 218.84 ml (7.40 oz.) 210g
C 438.27 ml (14.82 oz.) 420g
D 703.85 ml (23.80 oz.) 675g ( In Stock Now ) - Order Information:Minimum Order Quantity: 1 Bag
10 Bags / Box
Hardness:70 SHORE A
Operating Rated Level:1,000 V
Continuous Temperature:90ºC, Overload 130ºC
Color:Green
