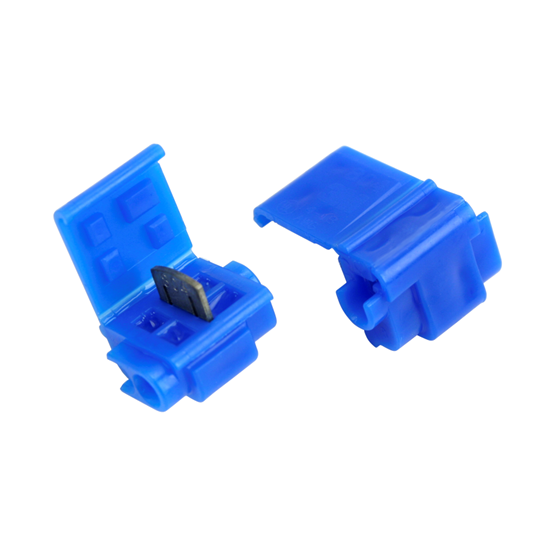

3M™ Scotchlok™ Moisture Resistant Self-Stripping Electrical Tap Connector 804
3M™ Scotchlok™ Moisture Resistant Self-Stripping Electrical Tap Connector 804

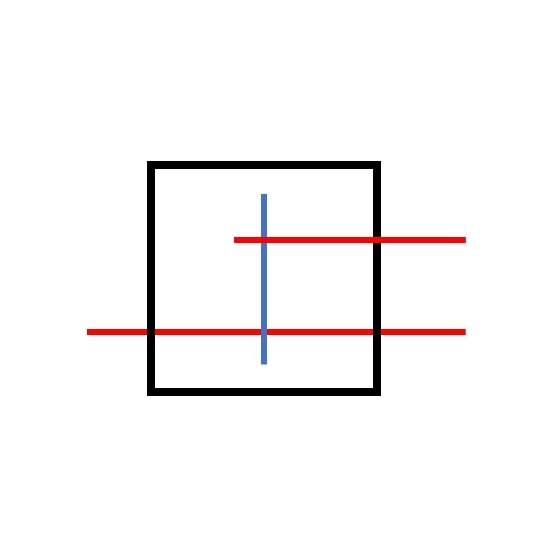

Use 3M™ Scotchlok™ Tap Connector 804 to electrically connect a (tap) wire end to a through (run) wire, insulate and provide a moisture resistant seal for the connection.
- Product Specification:Wire Range
18-16 AWG (0,75-1,0 mm2) solid and stranded, 14 AWG (1,5 mm2) stranded tinned or untinned
copper insulated conductors. For use with common thermoplastic insulated wires with a maximum insulation diameter of .145 inches (3,5 mm).
Maximum recommended current for general purpose applications: 18 AWG - 7 Amps, 16 AWG - 10 Amps, 14 AWG - 15 Amps
Voltage Rated: 600V
Maximum Operating Temperature: 90 °C - Order Information:Minimum Order Quantity: 1 Package
500 Piece / Package
10 Package / Box - Certificated:UL、CSA
