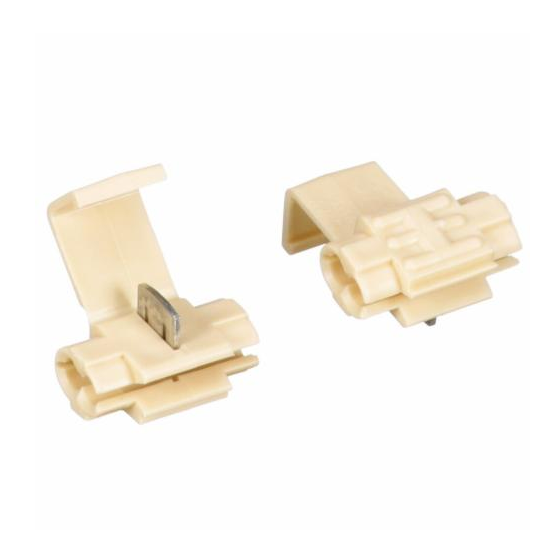

3M™ Scotchlok™ 564 Self-Stripping Electrical Connectors
3M™ Scotchlok™ 564 Self-Stripping Electrical Connectors

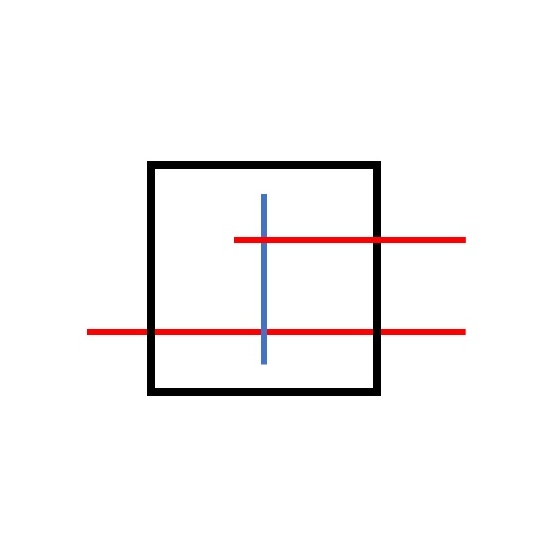

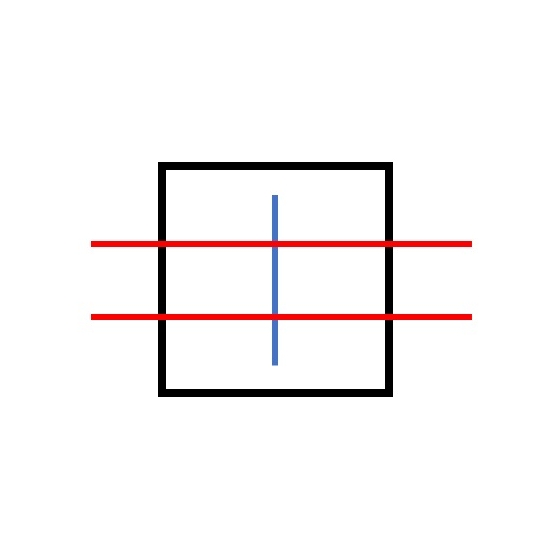

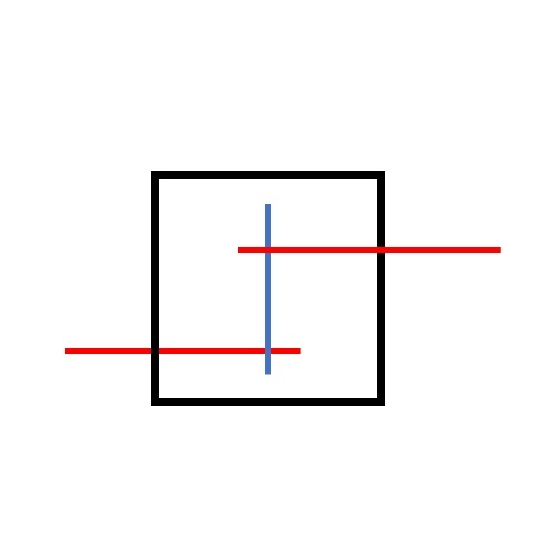

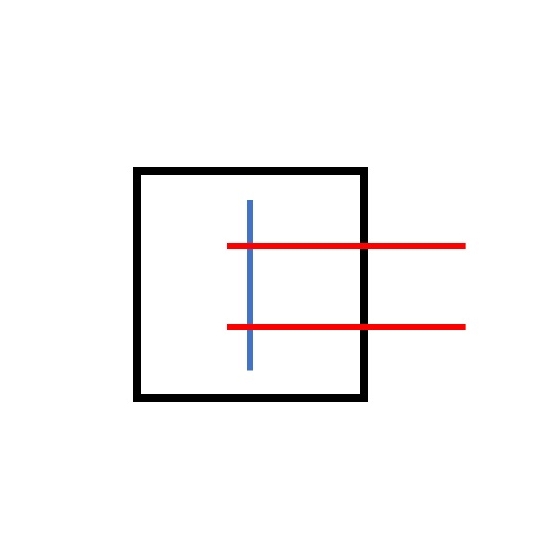

Use Part No. 564 to electrically connect two wires in a tap, inline, pigtail, or double run installation and insulate the connection.
- Product Specification:Wire Range
18-14 AWG (.75-1.5 mm2) solid or stranded copper conductors. For use with common thermoplastic insulated wires such as: T, TF, TFF, TFN, TFFN,
AWM, TEW, SAE-GPT with a maximum insulation diameter of .145 inches (3,5 mm). Maximum recommended current for general purpose applications: 18 AWG - 7 AMPS, 16 AWG - 10 AMPS, 14 AWG - 15 AMPS.
Voltage Rated: 32V
Maximum Operating Temperature: 90 °C - Order Information:Minimum Order Quantity: 1 Package
500 Piece / Package
10 Package / Box - Certificated:UL、CSA
