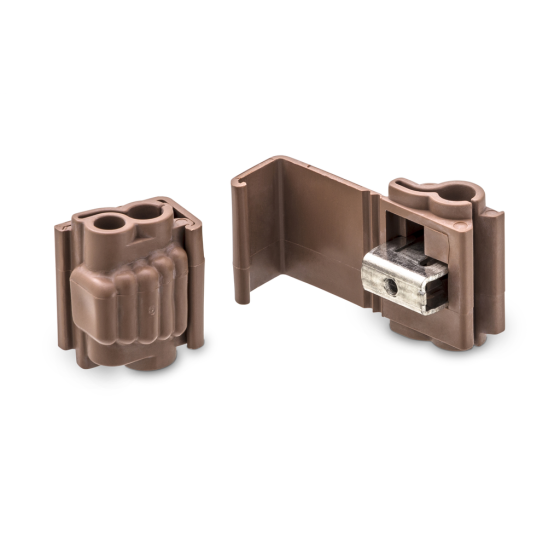

3M™ Scotchlok™ 567 Self-Stripping Electrical Tap Connectors
3M™ Scotchlok™ 567 Self-Stripping Electrical Tap Connectors

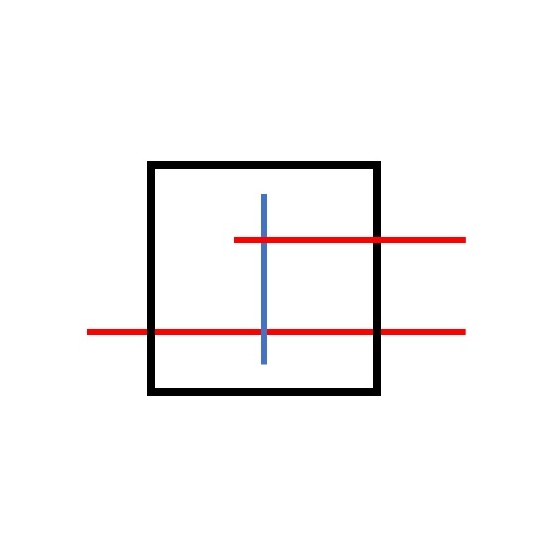

Use 3M™ Scotchlok™ Tap Connector 567 to electrically connect a (tap) wire end to a through (run) wire and insulate the connection.
- Product Specification:Wire Range
(Tap) 18-14 AWG (.75-1.5 mm2): (Run) 12-10 AWG (4.0 mm2)
Solid or stranded copper conductors. For use with common thermoplastic insulated wires such as: T, TF, TFF, TFN, TFFN, AWM, TEW, SAE-GPT with a maximum insulation diameter of (tap) .145 inches (3.5mm) run .190 inches (4.8 mm).
Voltage Rated: 600V
Maximum Operating Temperature: 90 °C - Order Information:Minimum Order Quantity: 1 Package
500 Piece / Package
10 Package / Box - Certificated:UL、CSA
