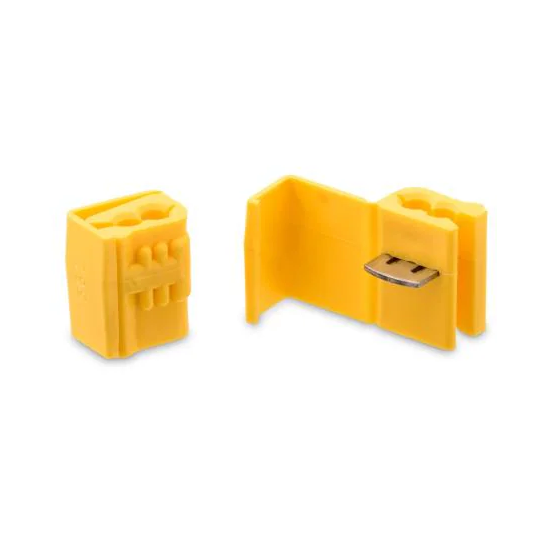

3M™ Scotchlok™ 562 Self-Stripping Electrical Tap Connectors
3M™ Scotchlok™ 562 Self-Stripping Electrical Tap Connectors

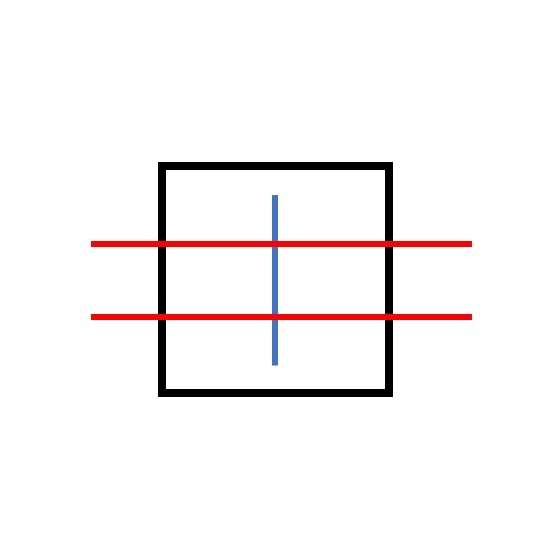

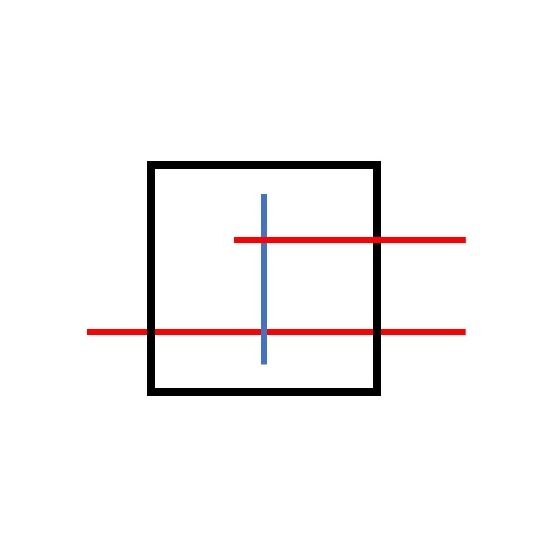

Use 3M™ Scotchlok™ Tap Connector 562 to electrically connect a wire end (tap) to a through (run) wire and insulate the connection.
- Product Specification:Wire Range
12 AWG solid or stranded thru 10 AWG stranded (4,0 mm2 solid or stranded) copper conductors. For use with
common thermoplastic insulated wire with a maximum insulation diameter of .190 inches (4,8 mm), such as: T,
TW: when using nylon jacketed wire, such as THHN, THWN, MTW, the connector should be crimped using the 3M E-9BM tool. Maximum recommended current for general purpose use: 12 AWG - 20 AMPS, 10 AWG - 25 AMPS.
Voltage Rated: 600V
Maximum Operating Temperature: 90 °C - Order Information:Minimum Order Quantity: 1 Package
500 Piece / Package
10 Package / Box - Certificated:UL
