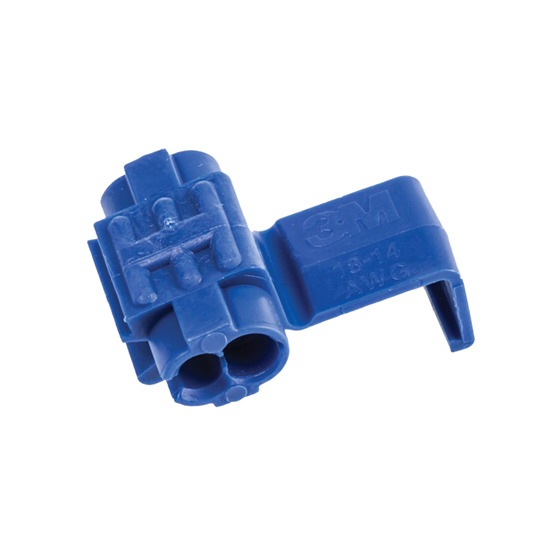

3M™ Scotchlok™ Displacement Electrical Tap Connector 560B

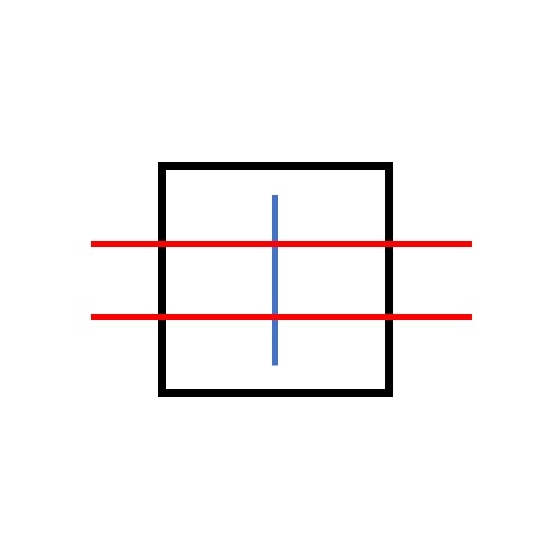

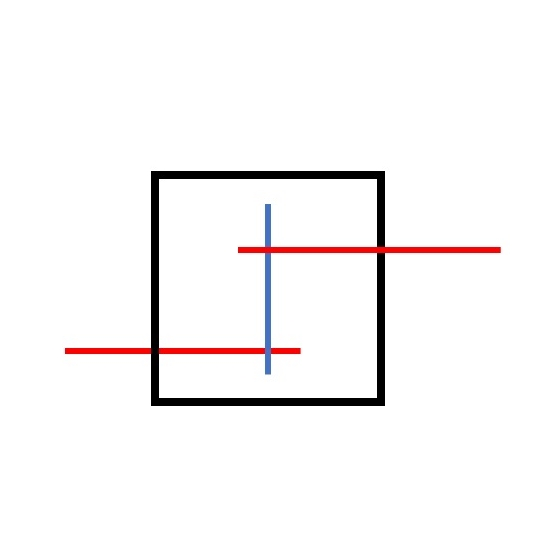

Use 3M™ Scotchlok™ Insulation Displacement Electrical Tap Connector 560B to electrically connect a (tap) wire end to a through (run) wire, join parallel run wires, and insulate the connection.

• Product Specification：Wire Range
  18 -14 AWG (0,75-1,5 mm2) solid or stranded, tinned or untinned copper conductors. For use with thermoplastic insulated wires such as: T, TW, TFF, TFN, TFFN, AWN, TEW, SAE-GPT, with a maximum insulation diameter of .145 inches (3,7 mm).
  Maximum recommended current for general purpose applications: 18 AWG - 7 Amps, 16 AWG - 10 Amps, 14 AWG - 15 Amps
  Voltage Rated: 600V
  Maximum Operating Temperature: 105 °C
• Order Information：Minimum Order Quantity: 1 Package
  500 Piece / Package
  10 Package / Box
• Certificated：UL
