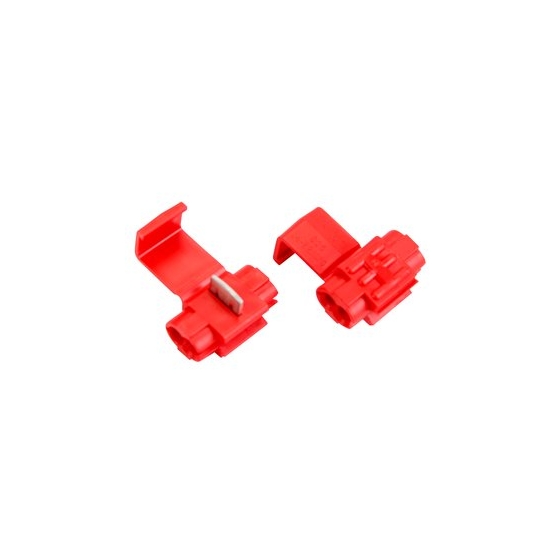

3M™ Scotchlok™ 905 Self-Stripping Electrical Connectors

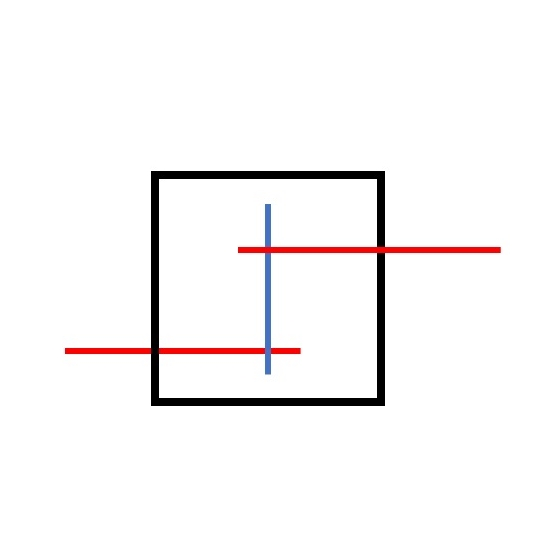

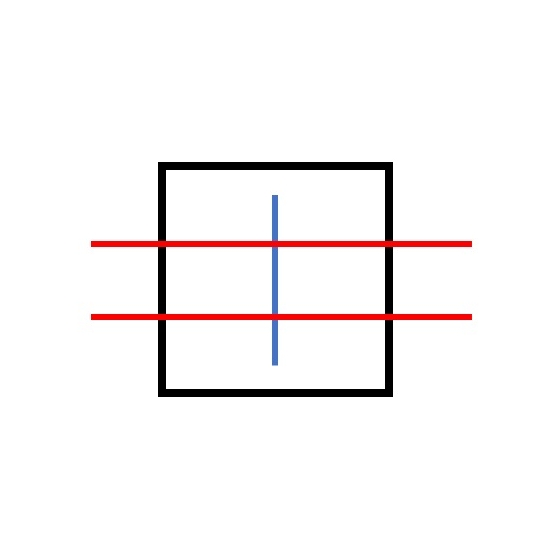

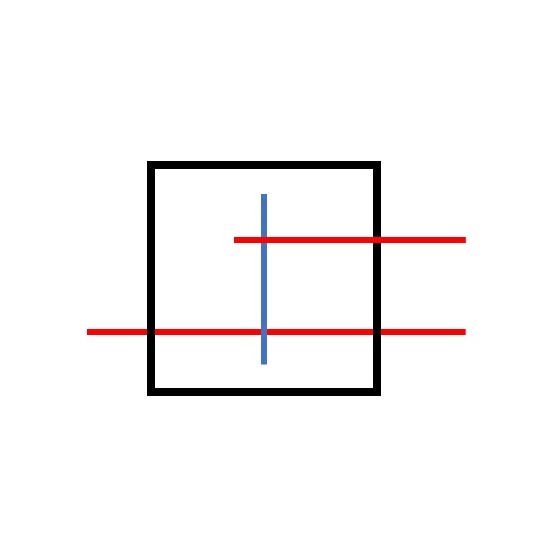

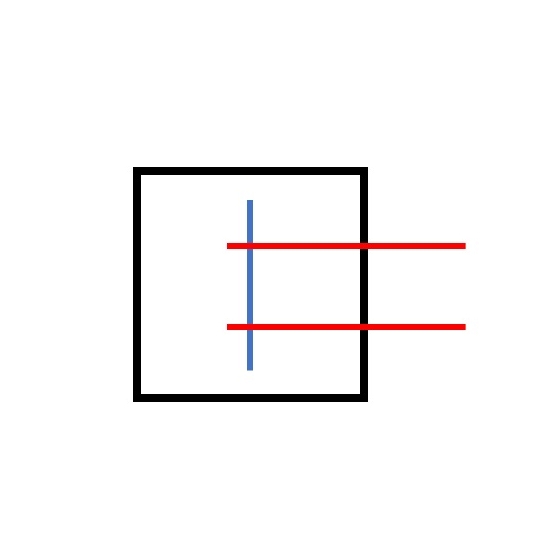

Use Part No. 905 to electrically connect two wires in a tap, inline, pigtail, or double run installation and insulate the connection. The 905 contains a deformable wire stop, inner channel.

• Product Specification：Wire Range
  18-14 AWG (.75-1.5 mm2) (outside channel) 22-18 AWG (.5-.75 mm2) (inside channel) solid or stranded copper conductors.
  Maximum insulation diameter: Outside: 3.5mm Inside:2.8
  Voltage Rated: 600V
  Maximum Operating Temperature: 105 °C
• Order Information：Minimum Order Quantity: 1 Package
  500 Piece / Package
  10 Package / Box
