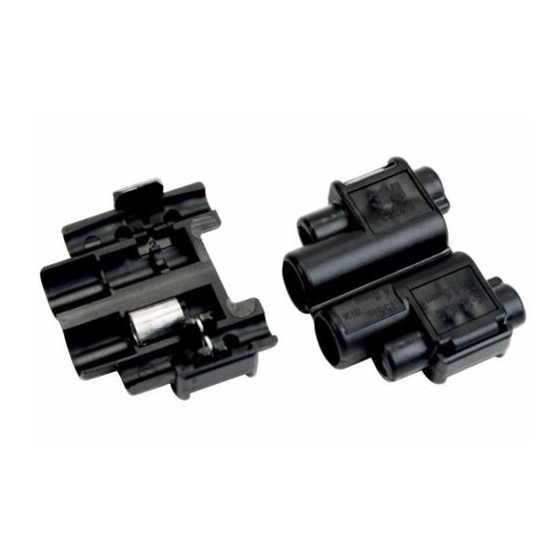

3M™ Scotchlok™ 901 Self-Stripping In-Line Bullet Receptacle
3M™ Scotchlok™ 901 Self-Stripping In-Line Bullet Receptacle

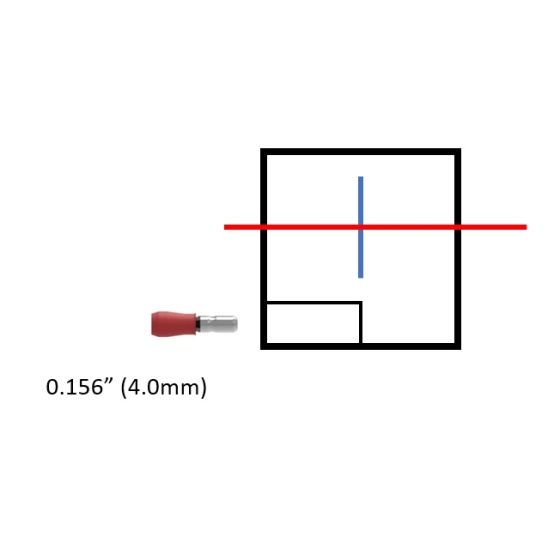

Use Part No. 901 to electrically tap into a wire in mid-span without cutting or stripping the wire. Connector then mates with a .156” (4.0 mm) male bullet, making a reusable plug connect wiring termination.
- Product Specification:Wire Range
18-14 AWG Solid or stranded, tinned or untinned (.75-1.5 mm2 sol. or str.) copper conductors. For use with common thermoplastic insulated wires such as: SAE-GPT, T, TF, TFF, TW, with a maximum insulation diameter of .145 inches (3.5 mm). Maximum recommended connector current: 18 AWG - 7 AMPS, 16 AWG - 10 AMPS,14 AWG - 15 AMPS.
Voltage Rated: 32V
Maximum Operating Temperature: 90 °C - Order Information:Minimum Order Quantity: 1 Package
500 Piece / Package
10 Package / Box
