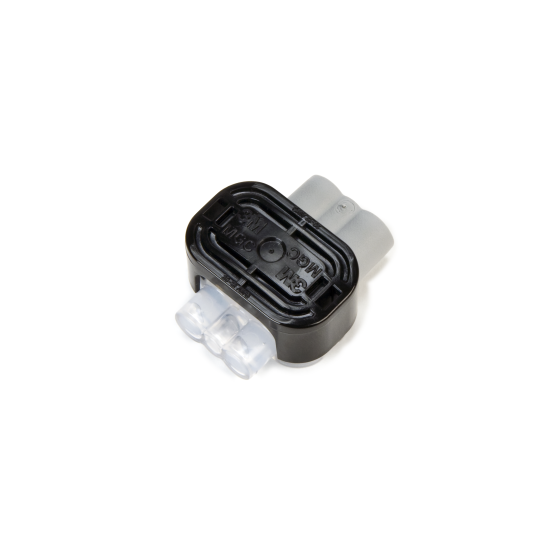

3M™ Moisture Guard Connector (MGC) Insulation Displacement Connector
The 3M™ Moisture Guard Connector is designed for use in the installation and repair of Irrigation and Landscape Lighting systems or other applications requiring moisture and UV protection. The connector will connect and provide protection for two or three conductors.
- Product Specification：Wire Range: Outside 14-16 AWG Maxium Insulation Diameter: 5.3mm； Inside 18-20 AWG Maxium Insulation Diameter: 3.8mm
Voltage Rated: 600V
Maxium Operating Temperture: 105 °C
- Order Information：Minimum Order Quantity: 25 Package
25 Piece / Package
10 Package / Box
