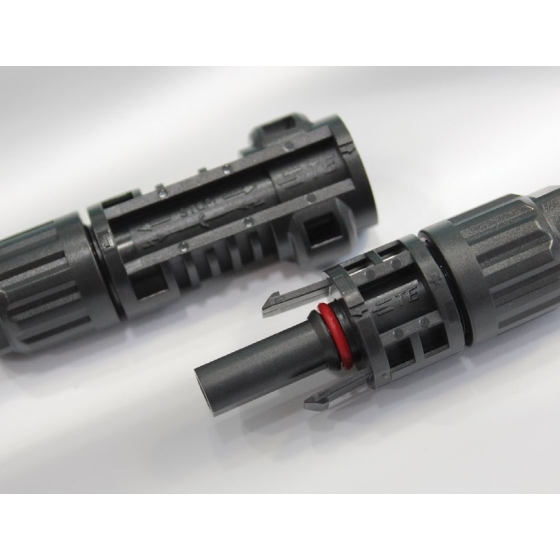

TE Connectivity SOLARLOK PV4-S DC Connector

The SOLARLOK PV4-S connector is an upgrade of the industry leading SOLARLOK PV4 connector to meet a minimum 1500V rating with IP68 protection. The SOLARLOK PV4-S connector has been tested to assure reliable and safe connections of solar arrays. The connectors use industry standard crimp tooling that is readily available and used by installers today.

• Product Specification：UL 15 A and TÜV 30 A: 2.5 mm2 / 14 AWG (at 85 °C)
  UL 20 A and TÜV 40 A: 4.0 mm2 / 12 AWG (at 85 °C)
  UL 30 A and TÜV 45 A: 6.0 mm2 / 10 AWG (at 85 °C)

  1000V DC / 1500V DC UL approved - UL6703
  1000V DC / 1500V DC TUV approved - IEC62852
• Order Information：Minimum Order Quantity: 1 SET ( with pin/socket contact)
