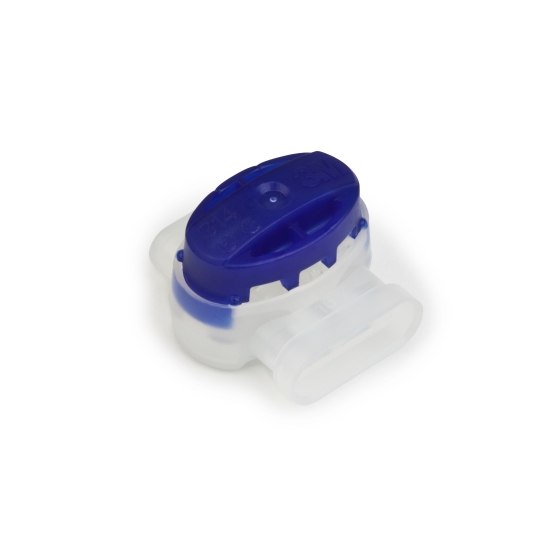

3M™ Scotchlok™ 314 Self-Stripping Moisture Resistant, Electrical Pigtail Connectors
3M™ Scotchlok™ 314 Self-Stripping Moisture Resistant, Electrical Pigtail Connectors

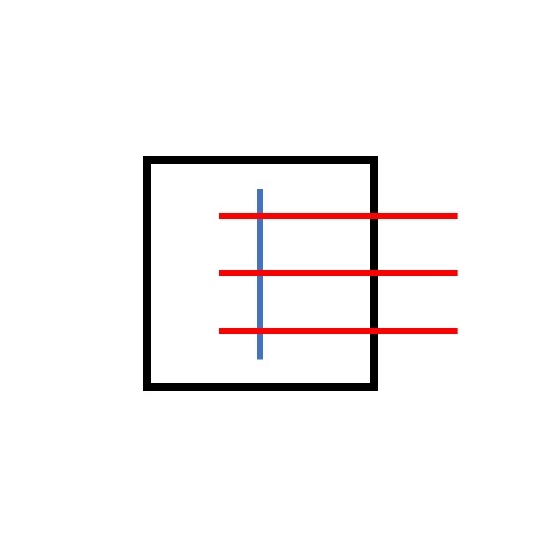

Use Part No. 314 to electrically connect two or three wire ends, insulate the connection, and provide a
moisture resistant seal.
- Product Specification:Wire Range
22-14 AWG Solid or stranded, tinned or untinned (0,5-1.5 mm2) copper conductors. For use with common thermoplastic insulated wires: T, TF, TFF, TFN, TFFN, AWM, TEW, SAE-GPT with a maximum
insulation diameter of .150 inches (3,8 mm). Maximum recommended current for general purpose applications:
22 AWG - 3 AMPS, 20 AWG - 5 AMPS, 18 AWG - 7 AMPS, 16 AWG - 10 AMPS, 14 AWG - 15 AMPS. - Order Information:Minimum Order Quantity: 1 Package
50 Piece / Package
10 Package / Box - Certificated:UL、CSA
