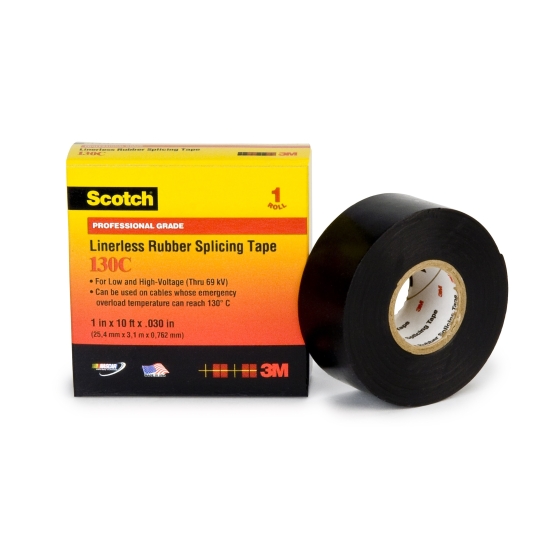

3M™ Scotch® Linerless Rubber Splicing Tape 130C
The high-voltage corona resistant tape must be supplied without a liner, be based on ethylene propylene rubber, and be capable of emergency operating cable temperature of 130˚C. The tape must be capable of being applied in either stretched or unstretched conditions without resulting in loss of either physical or electrical properties. The tape must not split, rack, slip, or flag when exposed to various environments (indoor or outdoor).
- Product Specification:Thickness X Width X Length
30mils x 3/4” x 30’ ( 0.76mm x 19mm x 9.1m )
30mils x 1” x 30’ ( 0.76mm x 25.4mm x 9.1m )
30mils x 1-1/2” x 30’ ( 0.76mm x 38mm x 9.1m )
30mils x 2” x 30’ ( 0.76mm x 51mm x 9.1m ) - Order Information:19mm Width
Minimum Order Quantity: 1 Roll
24 Rolls / Box
25.4mm Width
Minimum Order Quantity: 1 Roll
24 Rolls / Box
38mm Width
Minimum Order Quantity: 1 Roll
12 Rolls / Box
51mm Width
Minimum Order Quantity: 1 Roll
12 Rolls / Box
Scotch® Linerless Rubber Splicing Tape 130C is a highly conformable, linerless, ethylene rubber (EPR), high-voltage insulating tape, formulated to provide excellent thermal dissipation of splice heat.

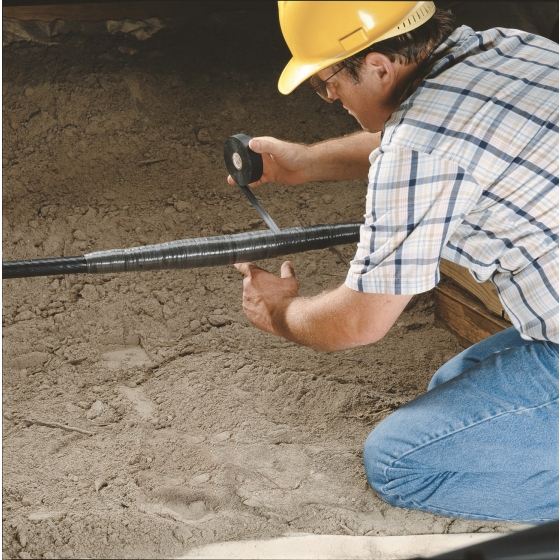

The tape is designed for use in splicing and terminating wires and cables. Rated up to 90˚C continuous operating temperatures and short-term 130˚C overload service.
The tape has excellent physical and electrical properties, which provide immediate moisture seals and void-free build-ups. This product can be used for low and high-voltage (through 69 kV) applications.
