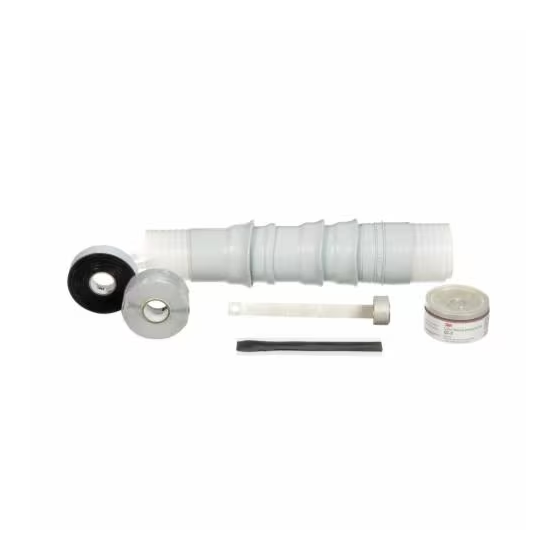

3M™ Quick Term II Silicone Rubber Outdoor Termination Kits
3M™ Quick Term II Silicone Rubber Outdoor Termination Kits
3M Cable Cold Shrink Termination Kits for Medium Voltage Cable
- Product Specification：5KV - 34.5KV Level
- Order Information：Minimum Order Quantity: 1 Tube
3 Tube / Kit
Introduced by 3M over 40 years ago,cold shrink technology is engineered for easy installation and long-term performance in the field. Our cold shrink terminations offer a reliable sealing solution for medium and high voltage applications, and are simple to install even in confined work areas – helping you save time and money.
| Kit Number | Cable Insulation O.D. Range (mm) | Conductor Size Range (AWG kcmil) | |||||
| 5KV (100%) | 8KV (100%) | 8KV (133%) | 15KV (100%) | 15KV (133%) | 25KV | ||
| 5632K | 8.4 - 17.5 | 8 - 2/0 | 8 - 1/0 | 8 -1 | 8 - 4 | 8 - 6 | - |
| 5633K | 16.3 - 22.9 | 3/0 - 300 | 2/0 - 250 | 1/0 - 4/0 | 2 - 3/0 | 4 - 1/0 | 2 - 1 |
| 5635K | 21.3 - 33.8 | 350 - 750 | 300 - 750 | 250 - 600 | 3/0 - 500 | 2/0 - 350 | 1/0 - 250 |
| 5636K | 27.9 - 41.9 | 750 - 1500 | 750 - 1250 | 600 - 1000 | 500 - 1000 | 350 - 750 | 300 - 500 |
| 5637K | 33.0 - 49.5 | 1000 - 2000 | 1000 - 2000 | 800 - 1750 | 750 - 1750 | 600 - 1500 | 600 - 1250 |
| Kit Number | Cable Insulation O.D. Range (mm) | Conductor Size Range (AWG kcmil) | ||
| 15KV (100%) | 15KV (133%) | 25KV | ||
| 5691K | 16.3 - 22.9 | 2 - 3/0 | 4 - 1/0 | 2 -1 |
| 5692K | 21.3 - 33.8 | 3/0 - 400 | 2/0 - 350 | 1/0 - 250 |
| 5693K | 27.9 - 41.9 | 500 - 750 | 400 - 750 | 300 -500 |
| 5694K | 33.0 - 49.5 | 800 - 1750 | 800 -1500 | 600 - 1250 |
