3M™ Quick Term II Silicone Rubber Indoor Termination Kits
3M Cable Cold Shrink Termination Kits for Medium Voltage Cable
- Product Specification:5KV-25KV Level
- Order Information:Minimum Order Quantity: 1 Tube
3 Tube / Kit

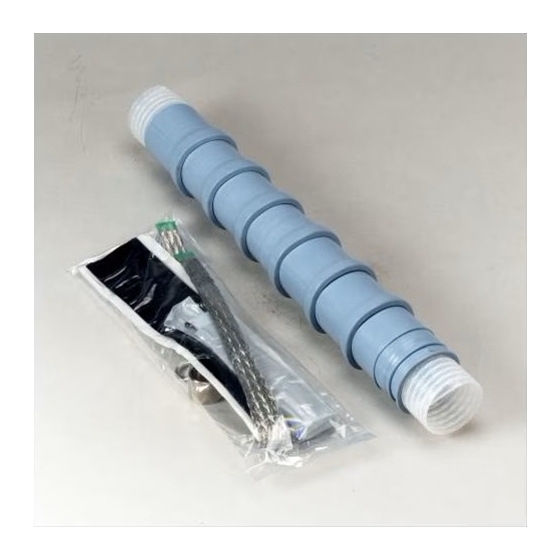

3M Quick Term II Silicone Rubber Termination Kits are one-piece Cold Shrink terminations for Concentric Neutral (CN), Tape Shield and Wire Shield cable. They meet the requirements of IEEE standard 48- 1990, for class 1 terminations and applicable sections of IEEE 404-1986. The 3M Quick Term II consists of a high dielectric constant (High-K) stress control tube insulated with a molded silicone skirted insulator. There is a three skirt design rated 15kV, a six skirt design rated 25/28 KV. Quick Term II terminations are provided in an expanded state, mounted on a removable inner supporting plastic core. As supplied in this pre-stretched condition the termination is ready for field installation. During installation the core is unwound, allowing termination to shrink and form a tight seal.
Kit Number | Cable Insulation O.D. Range (mm) | Conductor Size Range (mm2) | |||
5KV | 8.7KV | 15KV | 25KV | ||
QT-151 | 16-28 | 60-200 | 38-200 | 35-100 | - |
QT-152 | 27-46 | 250-600 | 250-600 | 125-500 | - |
QT-251 | 16-28 | - | - | 35-100 | |
QT-252 | 27-46 | - | - | 125-325 |
